(ABM-832C3) Machine de bender automatique de la règle des étiquettes Multi-fonctions Machine de cintre: Broaching, flexion, pont, piquet, perforation, trou, lipping, coupe de moisissure et coupe plate. Épaisseur de règle en acier supportée 0,45, hauteur 8-12 mm. Adewo a réussi de nombreuses sociétés de fabrication et d'impression nationales et étrangères pour fournir des machines avancées de cintreuse automobile, un soutien rentable, un soutien technique et un excellent service après-vente.

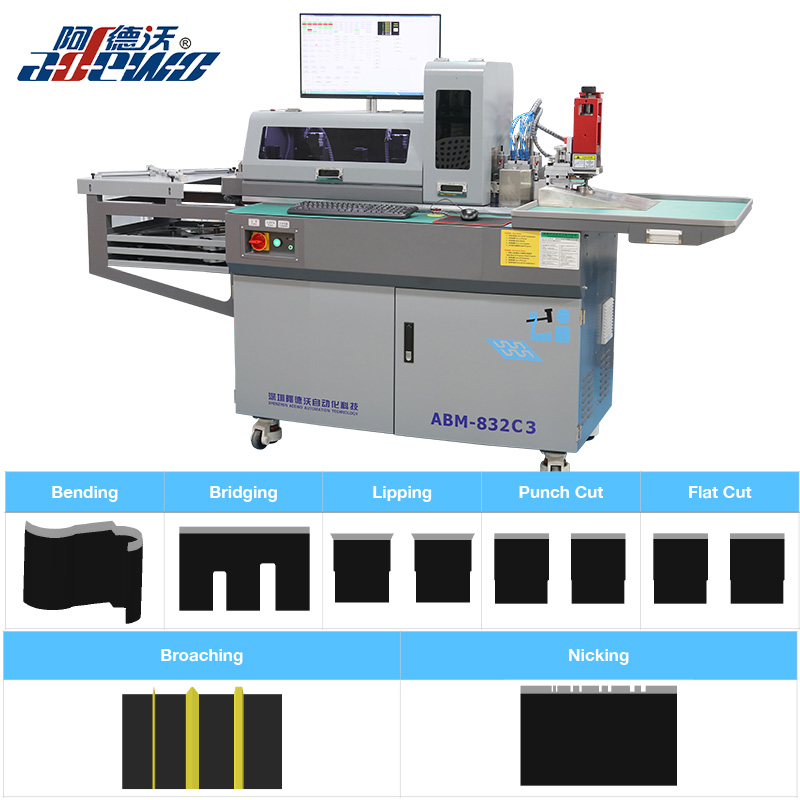

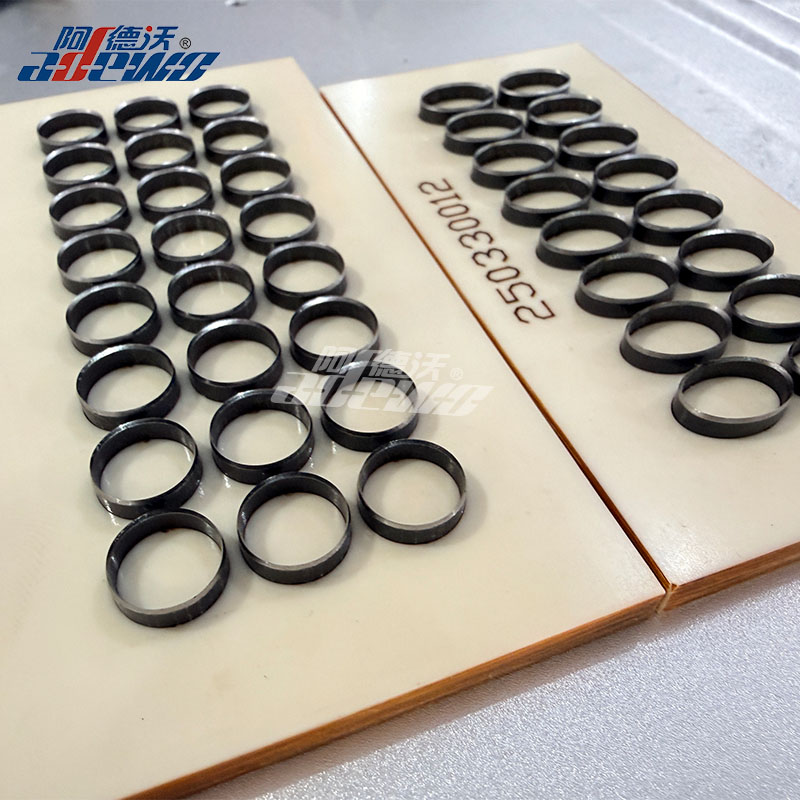

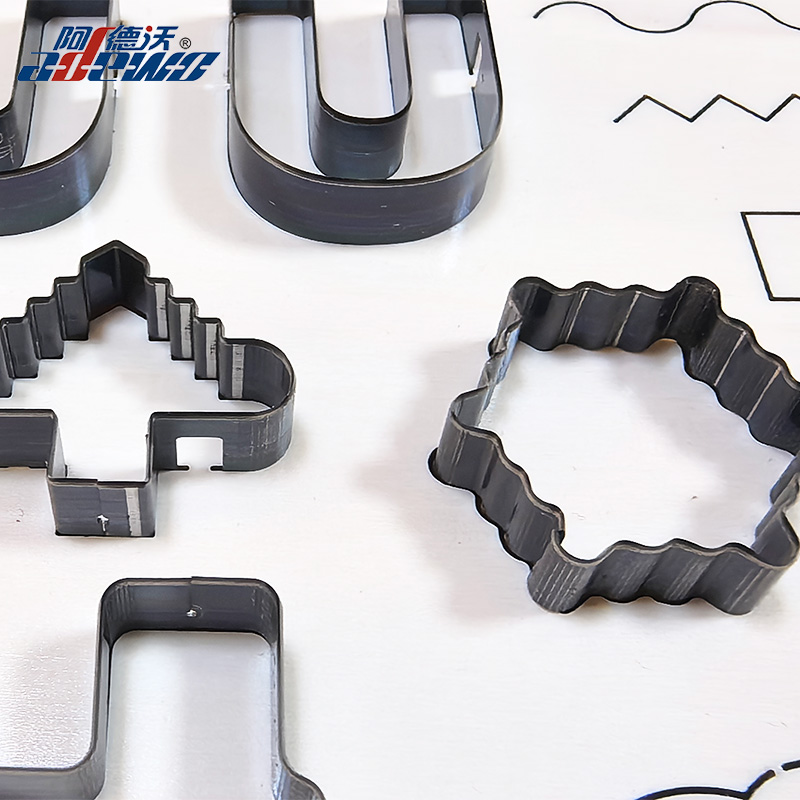

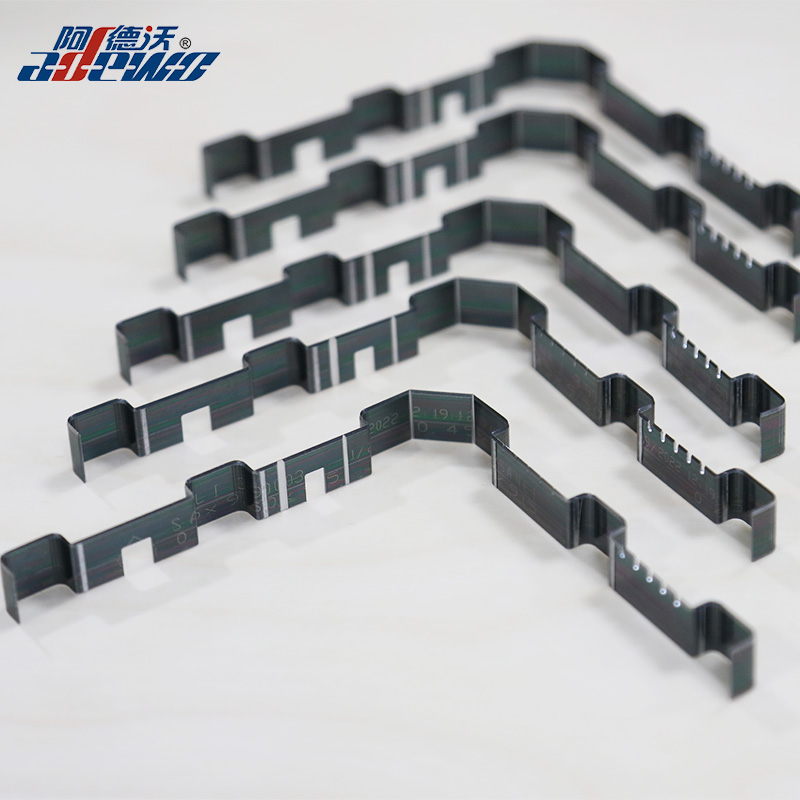

Picture of (ABM-832C3)Multi-Functions Label Rule Auto Bender Machine for reference:

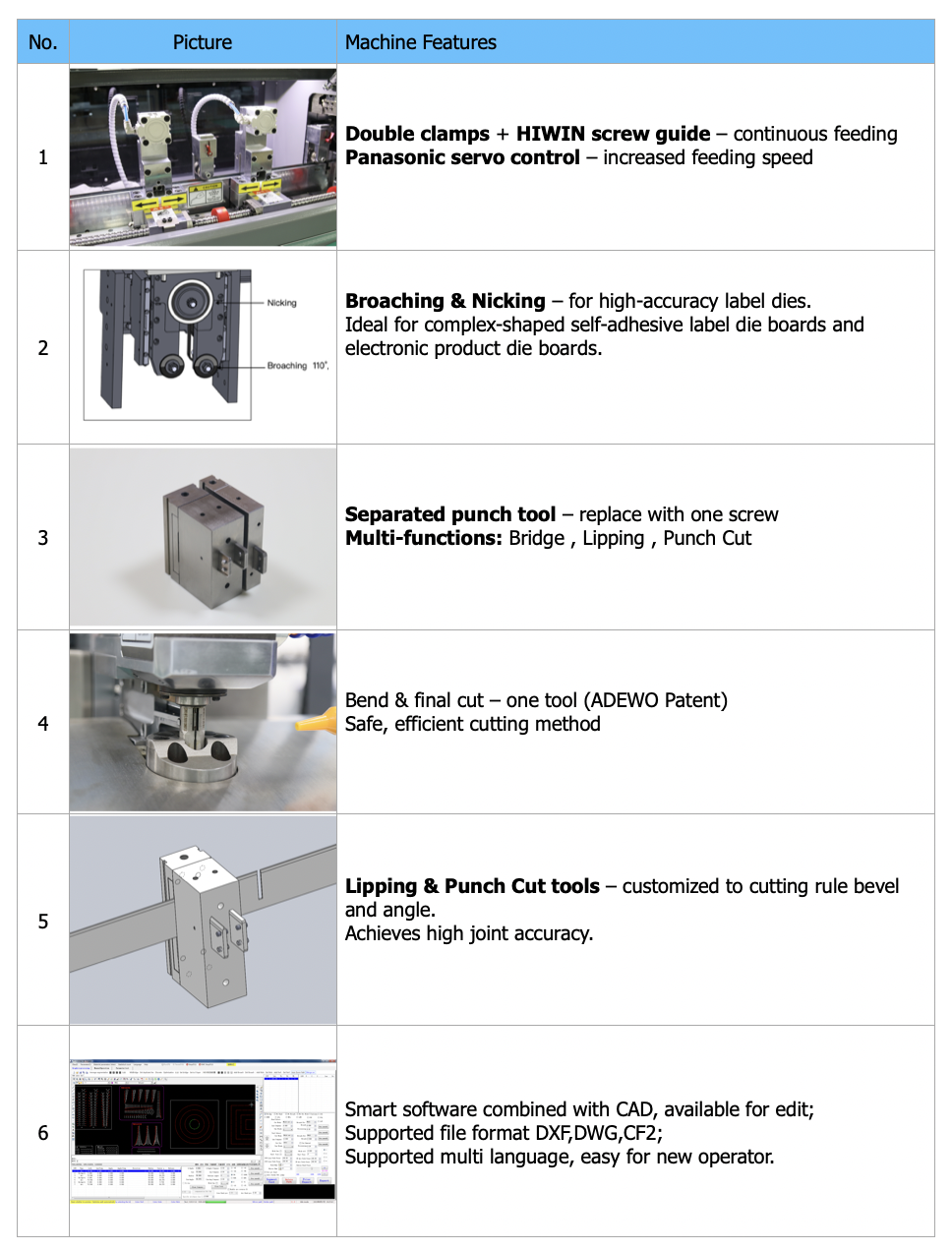

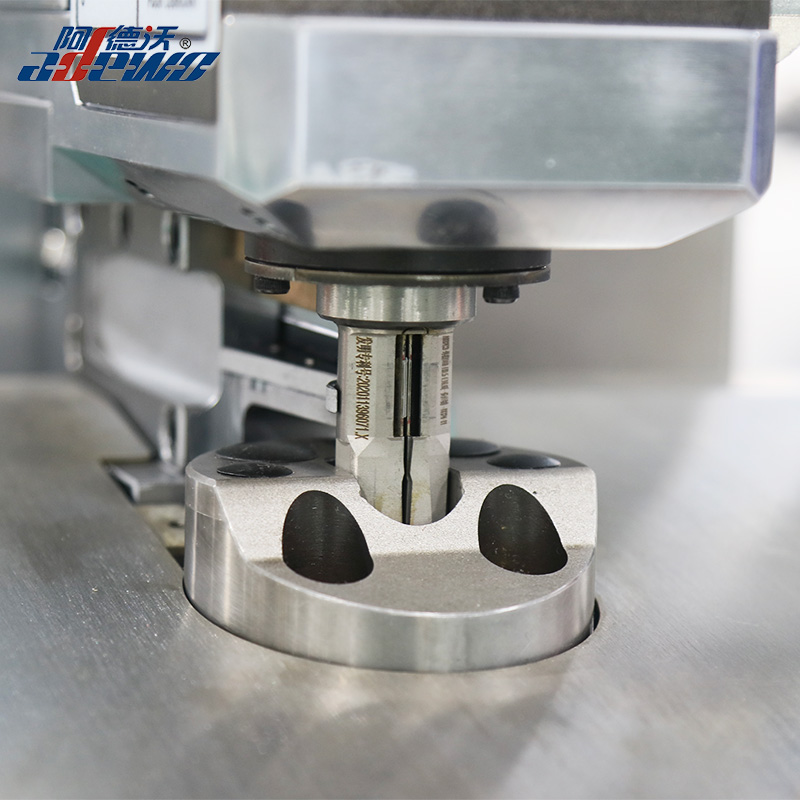

1. Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.
2. New design of final cutting,flatness adjustable of cutting rule, good cutting effect of flat cut.

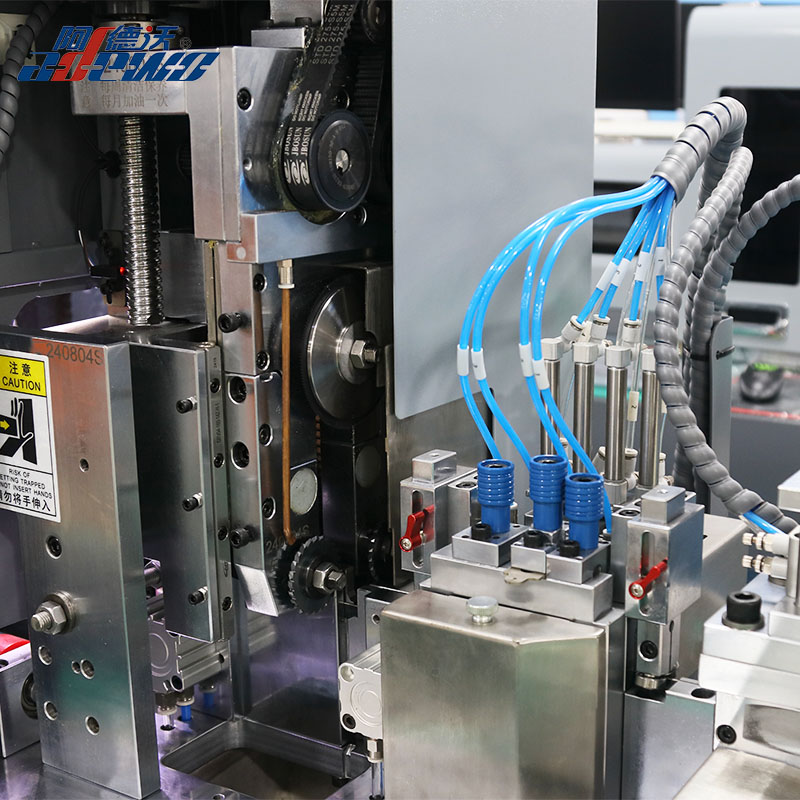

3. New structure of punch tool, easy to solve the problem of rule stuck.
4. Multi-Punch tool:including Lipping,Mold Cut,Bridge,Hole or Perforation, independent tooleasy to replace.
5. Multi-Broaching&Nicking for choice,wide and narrow broaching, suitable for high end diemaking.

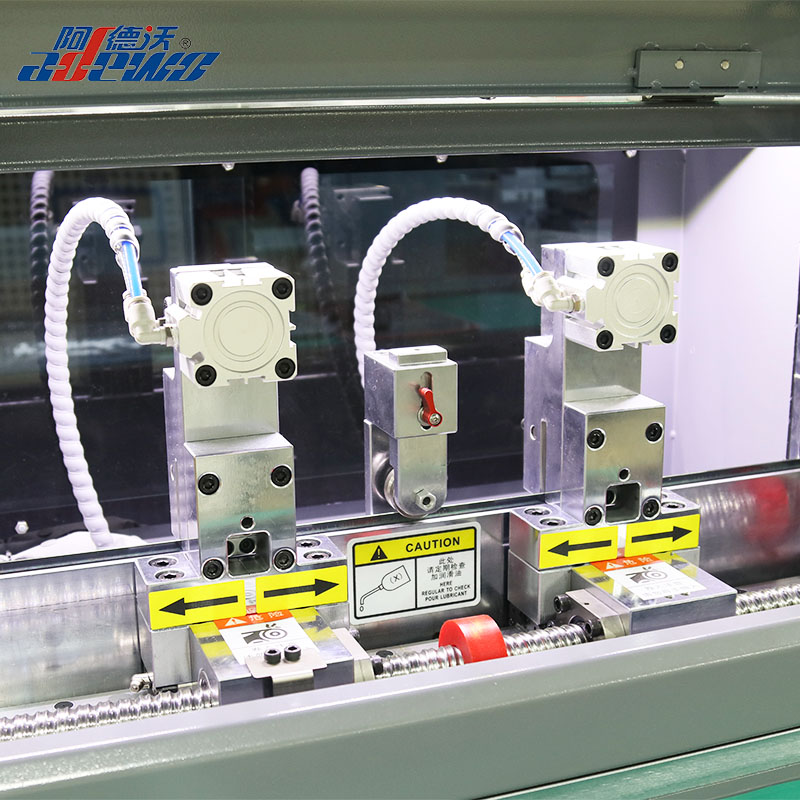

6. Double clamps,screw guide feeding continuously, improves work efficiency.
|
Supported rule thickness(mm) |
0.45mm(1pt) |
|
Supported rule height(mm) |
8-12mm |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
| Max. Bending Angle | 100° |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Functions |
Broaching,Bending,Bridge,Lipping,Cutting |
|
Optional function |
Broaching,Nicking,Perforation,Hole |
| Broaching |
Single set Broaching/Double set Broaching can be selected (110 degree and 150 degree) |
|
Optimal pattern format |
DXF,DWG,CF2 |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
450KG |
|
Overall dimension |
2700x800x1650mm(LxWxH) |
|
H.S. Code |
8462230000 |
